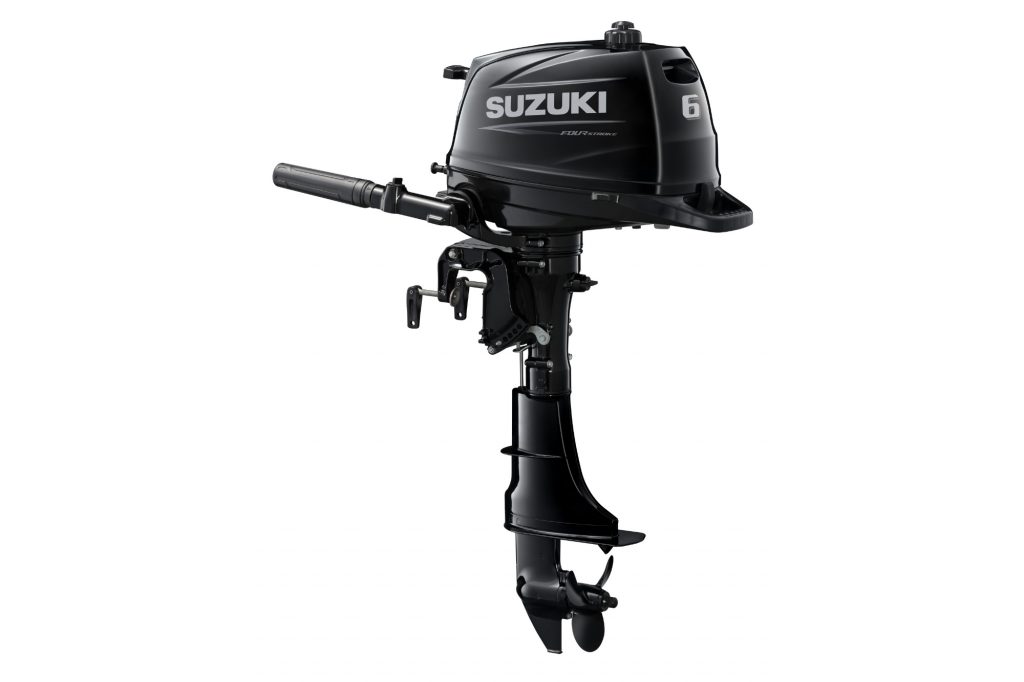

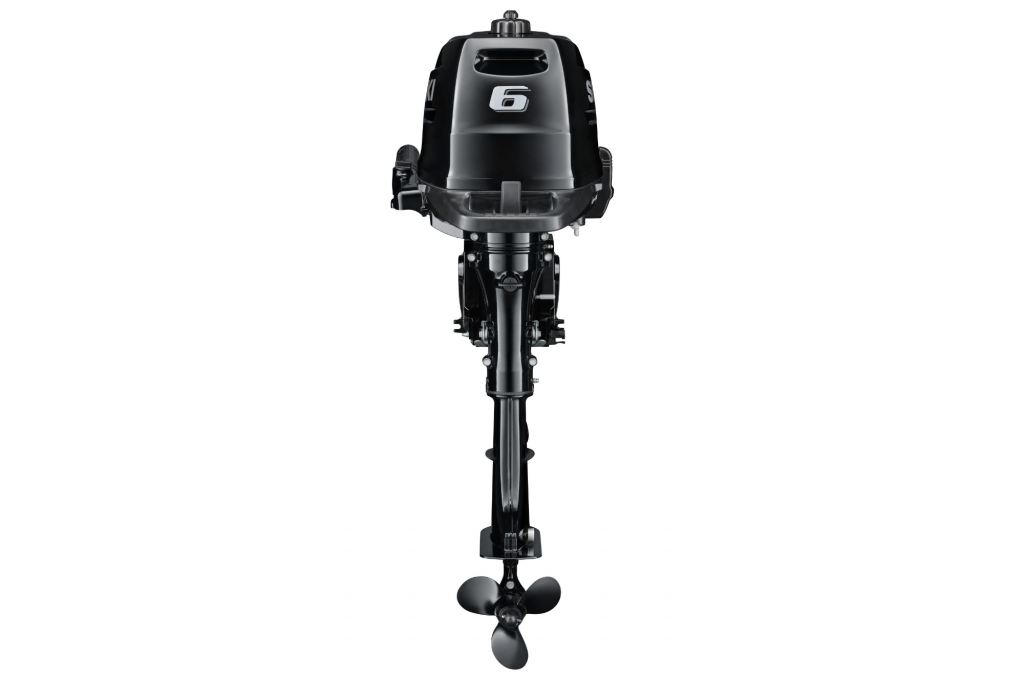

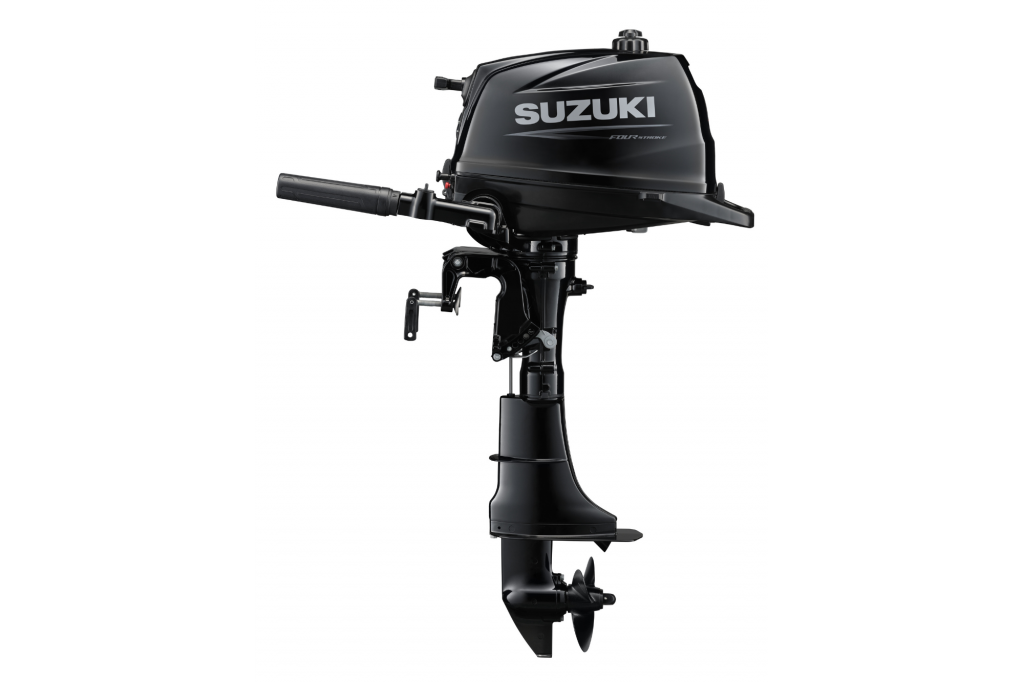

2026 SUZUKI DF6 AS

The DF6 brings 4-stroke performance and efficiency to portable outboards. Compact and lightweight, the DF6 is easy to transport and delivers surprising low- and mid-range torque for quick acceleration.

Knowing that small portables like the DF6 get transported a lot, we set out to design this outboard compact and lightweight to make transporting easier. Not to stop there, we added features that would make its operation easy and more user-friendly. As four-strokes, the DF6 outboard deliver clean, economical operation, and being made by Suzuki, you know it delivers excellent power, performance, and durability.

While maintaining the engine displacement of 138cm3, the conventional design has been overhauled and downsized to realize 1.0kg weight reduction (24.0kg*1). The lighter weight has improved operability. Along with weight reduction, the carrying handle integrated into the lower cover which has been rounded and made easier to hold, and an additional grip at the front further improve its portability.


The overhead integral fuel tank and the new lubricating systems allow transport and storage of the outboard on any of three sides (port, starboard, or front) without leakage of fuel or oil.

Because the overhead fuel tank is placed right above the carburetor, it also allows gravity fuel supply, enabling the engine to start instantly right after filling fuel, even after long-term storage. These features have enhanced its user-friendliness as a portable outboard motor.



In addition to a reincarnated stylish appearance, the newly designed and developed Suzuki DF6A, DF5A and DF4A boast the unrivalled lightweight, 24.0Kg (S-shaft models). The lighter weight has improved portability as well as operability.

An ease of handling that has enjoyed great popularity. Further improvements to the tiller handle have successfully mitigated vibrations contributing to fatigue and stress when transmitted to the hand during operation. The DF6A, DF5A and DF4A particularly excel at vibration mitigation in the mid-range.



Positioning the crankshaft slightly off center of the cylinder reduces lateral pressure against the cylinder wall as the piston moves up and down in the cylinder. The result is smoother piston movement, which improves operating efficiency.


Because the integral overhead fuel tank and one-way valve allow gravity fuel supply, the engine can be started without opening the engine cover, even after long term storage.



The low noise level is the result of a silencer, designed to optimize the capacity and shape of the air intake. The new design of the rocker arm and the plane bearing of the crankshaft also help reduce the noise level. We also changed the structure of the parts related to the rocker arm and eliminated its excessive play. In addition, we changed the crankshaft bearing from a common ball type to a plane type.
